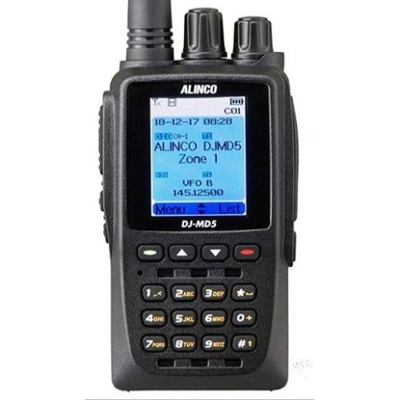

ALINCO DJ-MD5XE - DUALBAND DMR & ANALOGUE TRANSCEIVER
The latest of the MD5 range from Alinco now featuring APRS and Auto Repeater Roaming. VHF/UHF Dual-band DMR Handheld Transceiver.

Common to Digital and Analogue Modes:

Selectable output power 5W/2.5W/1W/0.2W
4000 channels, 250 tones, 250 scan lists
Displays DMR ID, Call sign, Name and Geographical info
VOX built-in
Allows CSV export/import of setting parameters
Easy import of DMR contact database
Single or dual channel selectable
FM Broadcasting receiver with 100 memory channels and VFO
Manually programmable Side and Hot keys
New area SQL function - when entering areas of your preference, it automatically switches to preassigned CH zones and channels
Digital Mode:

10,000 Talk Groups, 250 Radio ID, 200,000 contact lists
Displays Caller ID and name
32 pre-set encryption codes plus 255 pre-set AES 256bit Encryption codes
Selective calls including Individual, Group or All
Digital monitor function to receive signals without matching ID or colour codes
Analogue Mode:

Variety of signalling: CTCSS/DCS/DTMF/2-TONE/5-TONE encode and decode
Four different tone-burst tones
Programmable Auto Repeater Shift in VFO mode
General Specifications:

Frequency Range: 136-174MHz / 400-480MHz
Number of Channels: 4000ch
Zones Per Radio: 250 zones (max 250ch/zone)
Channel Spacing: Analogue 12.5/25KHz, Digital 12.5KHz
Operating Voltage: 7.4VDC nominal
Operating Temp Range: -20C to +55C
Frequency Stability: ± 2.5ppm
Antenna Impedance: 50Ω
Dimensions (W x H x D): 59mm x 118mm x 40mm (with battery pack)
Weight: 256g approx. (with EBP-88 Li-ion pack)
Transmitter Specifications:

RF Power Output: 5W/2.5W/1W/0.2W
Spurious Emission: Less than 1GHz -36dBm, more than 1GHz -30dBm
FM Hum & Noise (Analogue): 25KHz 40dB, 12.5KHz 36dB
Modulation: Analogue - 16K0F3E/11K0F3E | Digital - 7K60FXD/7K60FXE
Receiver Specifications:

Sensitivity (Analogue/12dB SINAD): 25KHz 0.25μV, 12.5KHz 0.35μV
Sensitivity (Digital/BER): 5% 0.3μV, 1% 0.7μV
FM Hum & Noise (Analogue): 25KHz 45dB, 12.5KHz 40dB
Audio Distortion: Less than 5%
Audio Output: 1W / 16Ω
Standard Accessories:

Li-ion Battery Pack - EBP-88 (7.4VDC 1700mAh)
Li-ion Battery Charger - EDC-314
Antenna - EA-228
AC Adaptor - EDC-191E
Belt Clip - EBC-34
PC Interface Cable - ERW-21
