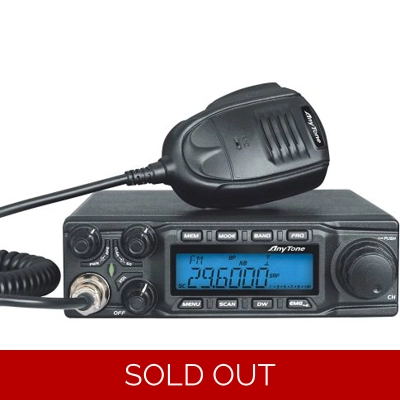

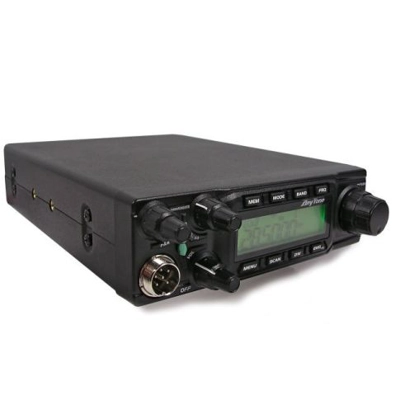

ANYTONE AT-6666 10M MOBILE TRANSCEIVER
Anytone AT-6666 10m 25.615-30.105MHz 60W AM/FM/USB/LSB

Great High Power 10 Meter Radio, feature big LCD display frequency and all kinds of information, flexiable menu function and PC programming software, ECHO function, programmable RB function and allow private channel setting and public channel setting.

Brief specification:

Modes: AM, FM, USB, LSB, PA
High/Med/Low Power Selectable
Fully PC Programmable
VFO Channel
CTCSS/DCS (option)
ASQ Function
Large LCD display
ECHO Function
AM RF Output (Maximum): 17W
FM RF Output (Maximum): 45W
SSB RF Output (Maximum): 60W
Dimensions: 158 x 48 x 245mm WHD
General

Frequency Range (HF Mode): 28.000-29.700 MHz (PC Programmable)
Frequency Range (Export Mode): 25.615-30.105 MHz (PC Programmable)
Frequency Bands A/B/C/D/E/F/G/H/I
Channel 40 channels (programmable) in each band
Microphone with push-to-talk /UP/DN and coiled cord
Input voltage 13.8V
Antenna connector UHF,SO239
Frequency Control Phase-Locked-Loop Synthesizer
Frequency Step 100Hz/1KHz/10KHz/100KHz/1MHz
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Temperature Range -20c fo + 50c
Transmitter Specification

Power Output AM: 15W / FM 45W / SSB: 60W(PEP)
Current Drain 10A (with modulation)
Unwanted Sideband 50dB
Frequency Response AM/FM: 300 to 3000Hz SSB 450 to 2500Hz
Output Impedance 50 ohms, unbalanced
Modulation AM/FM/SSB
Inter-modulation Distortion SSB: 3rd order, more than -25dB; 5th order, more than -35dB
SSB Carrier Suppression 55dB
Receiver Specification

IF Frequency AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF SSB: 10.695MHz
RF Gain Control 45 dB adjustable for optimum signal reception
Automatic Gain Control(AGC) Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt.
Squelch Adjustable; threshold less than 1.0µV.
Automatic Squelch Control(only AM/FM)1.0µV
Audio Output Power 3 watts into 8 ohms
Frequency response AM/FM: 300 to 3000 Hz SSB 450 to 2500 Hz
Built-in Speaker 8 ohms, round.
External Speaker(Not Supplied) 8 ohms; disables internal speaker when connected.
Sensitivity SSB: 0.25µV for 10dB(S+N)/N at greater than 1/2-watt of audio output
AM:1.0 µV for 10dB(S+N)/N at greater than 1/2watt of audio output
FM: 1.0µV for 20 dB (S+N)/N at greater than 1/2 watt of audio output
Adjacent-Channel Selectivity: AM/FM: 60dB SSB: 70dB
Image Rejection: More than 65 dB
