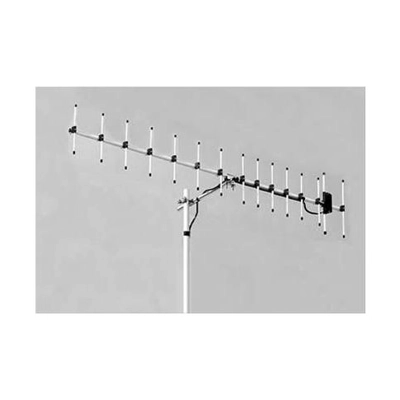

DIAMOND A430S15R 70CM 15 ELEMENT YAGI
DIAMOND A430S15R 70CM 15 ELEMENT YAGI
This antenna has high gain for small size, easy to install and is factory adjusted - so no tuning required. Ideal for base or portable use
Key Features/Specifications:
Frequency 430-440MHz
Gain 14.8dBi
Elements 15
Power 50W
Impedance 50 Ohms
Socket SO239
Front-to-back ratio >14dB
VSWR <1.4:1 (typical)
Boom length 2.245m
Mast size 25-47mm
Wind surface area 0.11 m2
Turning radius 1.4m
Dimensions 2245 x 370 x 73mm
Weight 0.97kg
This antenna has high gain for small size, easy to install and is factory adjusted - so no tuning required. Ideal for base or portable use
Key Features/Specifications:
Frequency 430-440MHz
Gain 14.8dBi
Elements 15
Power 50W
Impedance 50 Ohms
Socket SO239
Front-to-back ratio >14dB
VSWR <1.4:1 (typical)
Boom length 2.245m
Mast size 25-47mm
Wind surface area 0.11 m2
Turning radius 1.4m
Dimensions 2245 x 370 x 73mm
Weight 0.97kg
