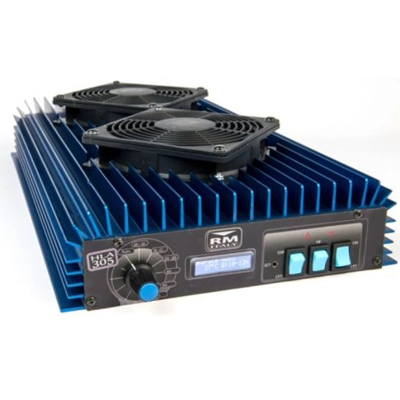

RM HLA305V - PROFESSIONAL WIDEBAND HF 1.8-30MHZ (250W) AMPLIFIER (WITH LCD)
The HLA 305V is a wideband compact amplifier for the HF band covering 1.8-30 MHz Output is nominal 250W at full power, 6 band filter and LCD for Amplifier Status. Input drive from 1W to 10W maximum. Ideal for low power handhelds and FT-817ND etc

Key Features/Specifications:

Output is nominal 250W at Full Power.
6 Band filter and LCD for Amplifier Status.
Input drive from 1W to maximum of 10W.
Forced multispeed ventilation.
Frequency: 1.8 MHz – 26 MHz and 28 MHz – 30 MHz
Mode: AM FM SSB CW RTTY.
RF Drive: 1-10 W typ. (15W max). AM/CW
Output Power: P1db 50-240W AM/FM/CW ± 1db typ. max
250W max. AM/FM/CW/Average Power
400W PEP SSB
Gain: 13,5 ± 1db P1db.
Power Voltage: 13 Vcc ± 2V.
Input Power: 45 A Max.
Input Impedence: 50 Ohm (unbalanced).
Output Impedence: 50 Ohm (unbalanced).
Final Transister: MRF 455 x 4.
Circuit: Class AB push-pull.
Dimensions: 240 x70x 450 mm. Weight: 4 Kg.

PLEASE NOTE: Do not EXCEED Input Power - The manufacturers RM Italy do not repair any amplifiers that have been over driven by mistake under warranty and charges are very expensive - If you are unsure please call or email for further details
