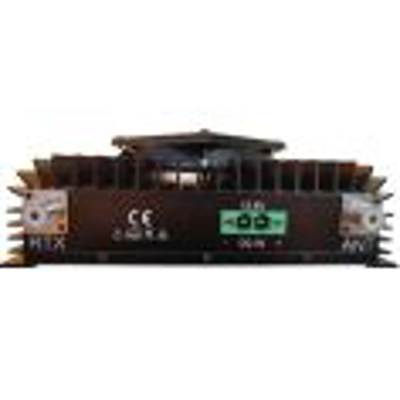

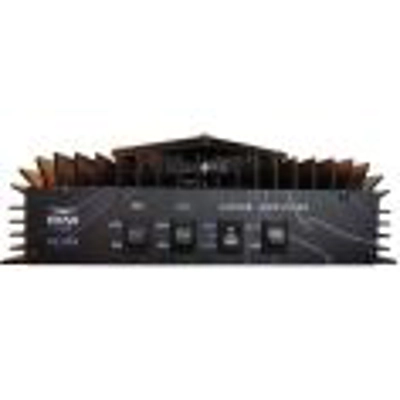

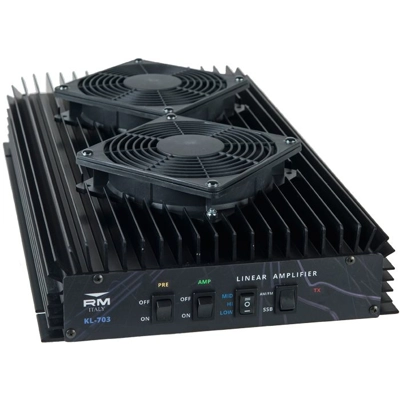

RM KL703 HF 25 - 30 MHZ LINEAR AMPLIFIER
RM KL703 HF 25 - 30 MHZ LINEAR AMPLIFIER
The KL703 is a new 500W linear Amplifer for use between 25 and 30 MHz, (developed for the 10m amateur radio band).
It can be used for all types of narrow band modulation (SSB, CW, AM, FM and Data). It is particularly suitable for portable / in-car operation, as it requires a supply voltage of 13.8 V DC.
The KL703 requires approximately 30 W for maximum output power. The harmonic output is better than -55 dB.
The KL703 also has a RX preamplifier that can be used to increase the readability of weak signals.
Key Specifications:
Operation Frequency: 25—30 MHz (10m Amateur HF Band)
Modulation Types: SSB,CW,AM, FM, data etc (All narrowband modes)
Transistor: 16x RM 3 MOSFET
Max I/P Current: 50A
Power Supply: 13.8VDC+/- 1V 60A
Input Fuse (Internal): 4x15A (Auto Fuse)
Input RF Power: 1-35W max (All modes)
Output RF Power: 500W max
Maximum bypass power (Amplifier off): 50W max
Input VSWR: 1.1—1.5:1
Output VSWR Maximum: 2.5:1
Harmonic Output: >-50dBc 25-30MHz
The KL703 is a new 500W linear Amplifer for use between 25 and 30 MHz, (developed for the 10m amateur radio band).
It can be used for all types of narrow band modulation (SSB, CW, AM, FM and Data). It is particularly suitable for portable / in-car operation, as it requires a supply voltage of 13.8 V DC.
The KL703 requires approximately 30 W for maximum output power. The harmonic output is better than -55 dB.
The KL703 also has a RX preamplifier that can be used to increase the readability of weak signals.
Key Specifications:
Operation Frequency: 25—30 MHz (10m Amateur HF Band)
Modulation Types: SSB,CW,AM, FM, data etc (All narrowband modes)
Transistor: 16x RM 3 MOSFET
Max I/P Current: 50A
Power Supply: 13.8VDC+/- 1V 60A
Input Fuse (Internal): 4x15A (Auto Fuse)
Input RF Power: 1-35W max (All modes)
Output RF Power: 500W max
Maximum bypass power (Amplifier off): 50W max
Input VSWR: 1.1—1.5:1
Output VSWR Maximum: 2.5:1
Harmonic Output: >-50dBc 25-30MHz
HxUwiWN
Product Code
2500.0 g
weight
New
Product Condition
1
Units in Stock
