SHARMAN AV-SW2M - 2 WAY SO239 COAX SWITCH
SHARMAN AV-SW2M - 2 WAY SO239 COAX SWITCH

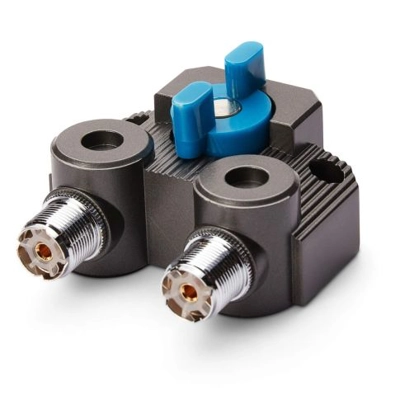

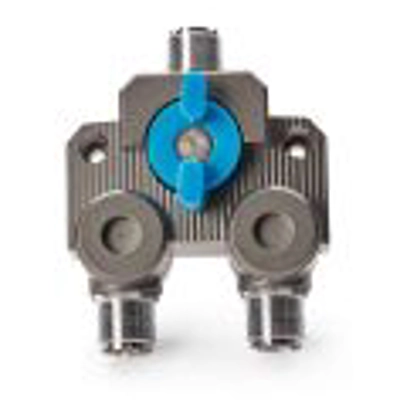

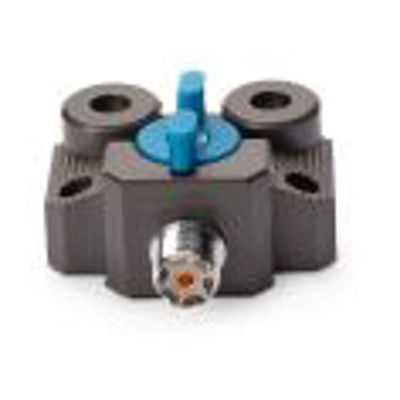

2-way Coax Switch
Key Features/Specifications:
Sockets SO239
Power 2kW (DC-30MHz), 1kW (30-200MHz), 500W (200-500MHz), 250W (500-1000MHz)
Range DC-1000MHz
Insertion Loss: DC-500MHz 0.05dB, 500-1GHz 0.10dB
Size89 x 70 x 40mm
Weight 446g
2-way Coax Switch
Key Features/Specifications:
Sockets SO239
Power 2kW (DC-30MHz), 1kW (30-200MHz), 500W (200-500MHz), 250W (500-1000MHz)
Range DC-1000MHz
Insertion Loss: DC-500MHz 0.05dB, 500-1GHz 0.10dB
Size89 x 70 x 40mm
Weight 446g
