XIEGU G90 - PORTABLE HF SDR TRANSCEIVER
XIEGU G90 - PORTABLE HF SDR TRANSCEIVER

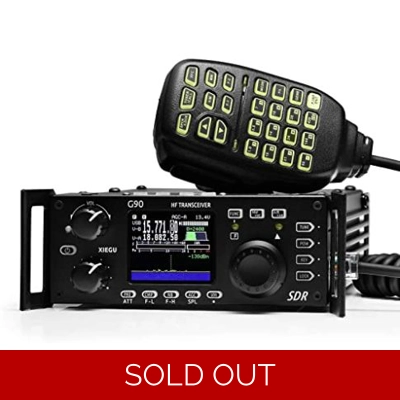

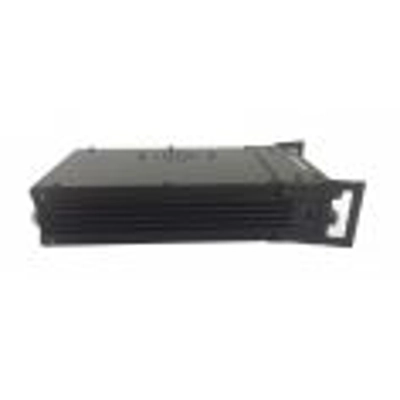

Xiegu G90 is a portable 20W HF amateur radio transceiver with an SDR architecture and built-in automatic antenna tuner. The display unit can be separated from the radio unit for flexible installation options. The baseband I/Q output allows the G90 to interface with external devices like a PC or the Xiegu optional panadapter.
Features:
High performance front end narrowband ESC preselector
Frequency range of 0.5~30MHz, SSB/CW/AM
1.8-inch high brightness colour TFT LCD screen
±24k bandwidth spectrum display with waterfall
Software defined narrowband filter (CW mode: 300Hz)

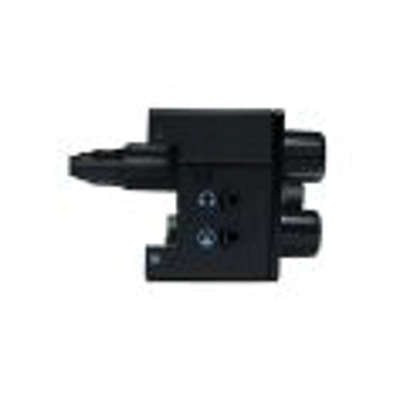

Detachable Front Panel/Display Unit
Up to 20W of RF power
Built-in wide range automatic antenna tuner
I/Q output for interfacing with a PC or XDT1 panadapter
General Specifications:
Operating Voltage Range: 12 ~ 15V DC
Operating Temperature Range: 0°C ~ 55°C
Frequency Stability: ±2ppm (after 30 minutes of power on)
Size: 120mm x 45mm 210 mm (without protrusions, head unit combination status)
Weight: 1kg (approx.)
Receiver Specifications:
RX Frequency Range: 0.5MHz to 30MHz
Modes: SSB/CW/AM
RX Sensitivity: better than 0.25uV @12dB Sinad (PRE: ON) Machine dynamic range: 90dB
Adjacent Channel Suppression: 60dB
Audio Output Power: 0.5W@ 4Ω
Standby Current: 750mA @ Max
Receiver Specifications:
TX Frequency Range: all amateur bands 1.8 to 30 MHz
Modes: SSB/CW/AM
RF Output Power: 20W
Spurious Suppression: ≥50dB
Carrier Suppression: ≥50dB
Sideband Suppression: ≥50dB
Transmit Working Current: 8A @ Max
Antenna Tuner Specifications:
Initial Tuning Time: ≤12s
Re-entry Tuning Time: ≤2s
Included in Box:
Xiegu G90 Transceiver
Multi-function Microphone
USB CAT and Firmware Cable
DC Power Cable with fuse
DB-9 remote head cable
Operation Manual
Warranty Card
Quality control card
Hex key
Front extension handles
Rear extension handles
