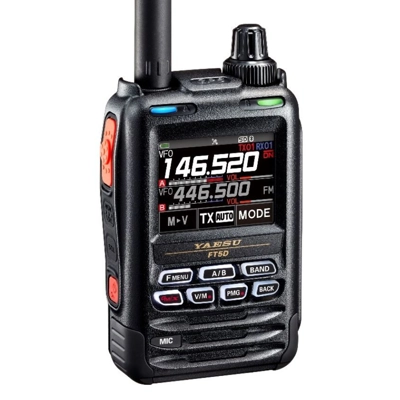

YAESU FT-5DE
YAESU FT-5DE - 5W C4FM/FM 144/430MHZ DUAL BAND DIGITAL TRANSCEIVER **WITH £50 CASHBACK*
** Please visit: yaesucashback.co.uk for Cashback applications. **

Yaesu FT-5DE - 5W C4FM/FM 144/430MHz Dual Band Digital Transceiver WITH £50 CASHBACK.

The FT5DR provides reliable 5W RF power output and achieves loud 1W audio power that has been tuned for quality audio. Real Dual Band Operations (V+V, U+U, V+U, U+V) are available with two independent receivers.

A high-resolution display highlights the frequency of the operational band. The color of the operating band frequency can be selected from white, blue or red. Three (3) touch panel keys and seven (7) operation keys below the display offer intuitive operability.

Advanced Features

Wireless hands-free operation using the optional Bluetooth® headset (SSM-BT10)
VOX function
Memory Auto Grouping (MAG)
VFO Band Skip Function
Wide-range RX coverage with continuous reception from 0.5MHz–999.99MHz (A Band) and 108MHz–580MHz (B Band)
Built-in high-sensitivity 66 channel GPS receiver
1200/9600bps APRS Data modem
Supplied Accessories

Dual Band Helical Antenna
7.2v 2200mAh Li-ion Rechargable Battery Pack (SBR-14LI)
UK 3-Pin Mains Charger
Belt Clip
Operating Manual
USB Cable
Specification

Frequency Ranges - A(Main) Band RX: 0.5 - 1.8MHz (AM Broadcast) 1.8 - 30MHz (SW Band) 30 - 76MHz 76 - 108MHz (FM Broadcast) 108 - 137MHz (Air Band) 137 - 174MHz (144MHz HAM) 174 - 222MHz 222 - 420MHz 420 - 470MHz (430MHz HAM) 470 - 800MHz 800 - 999.995MHz
Frequency Ranges - B(Sub) Band RX: 108 - 137MHz (Air Band) 137 - 174MHz (144MHz HAM) 174 - 222MHz 222 - 420MHz 420 - 470MHz (430MHz HAM) 470 - 580MHz
Frequency Ranges - TX: 144 - 146MHz (C4FM/FM) 430 - 440MHz (C4FM/FM)
Circuit Type: NFM/AM: Double-Conversion Superheterodyne FM/AM Radio: Direct-Conversion Modulation Type: F1D, F2D, F3E, F7W
RF Power Output: 5W /2.5W /1W /0.3W
Size: 62x100x4mm
Weight: 282g
£435.00 inc. tax
