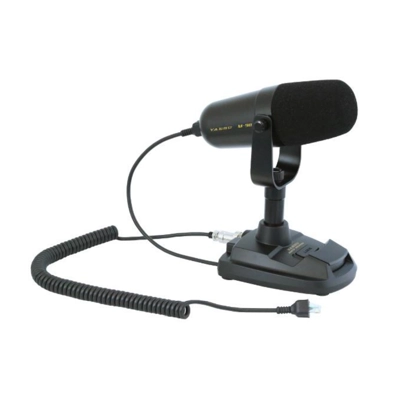

YAESU M-90D - DESKTOP DYNAMIC MICROPHONE
The M-90D is equipped with both a round 8-pin jack and an 8-pin modular jack. The M-90D does not require the SCU-53.

The M-90D microphone utilises a dynamic microphone element that is finely tuned to deliver rich low to mid frequency response desirable for a clear and concise conversation.

Using a windscreen cover and a directional microphone element, the structure of the microphone is designed to concentrate voice input from the front while reducing ambient noise from the side. Built-in Low-Cut filter creates clear and crisp audio

The PTT of the M-90D uses three Air-Cylinder tubes similar to the Reference Microphone M-1. This provides solid and smooth extended operation. A simple one touch PTT keylock button is placed directly above the PTT key for those long rag chews.

Specification

Supply Voltage: DC 5.0V ±10%
Current Consumption: 15 Ma (TYP)
Microphone Type: Dynamic
Frequency Response: 30-1700 Hz
Sensitivity: -60 dB (1 kHz 0 dB=1V/1Pa)
Microphone Impedance: 600 Ω
Dimensions: 106mm x 192mm x 126.5mm
Weight (approx.): 530g (without cable)
Compatible Transceivers

FT-817/ND
FT-450/D
FT-950
FTDX1200
FTDX101D
FT-747*
FT-818ND
FT-900
FT-1000MP
FTDX3000D
FTDX10MP
FT-840*
FT-857/D
FT-991/A
FT-1000MP MARK-V
FTDX5000
FTDX10
FT-850
FT-891
FT-847
FTDX9000
FT-990*
FT-897/D
FT-920
FT-2000/D
FT-1000*
*Requires optional “Microphone Power Supply Kit”
