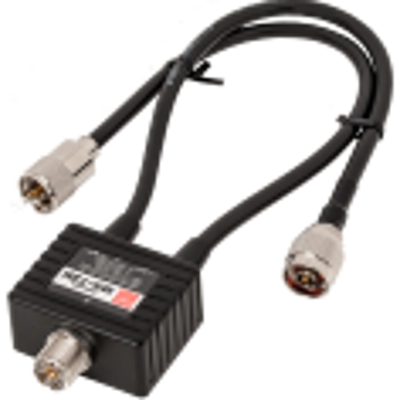

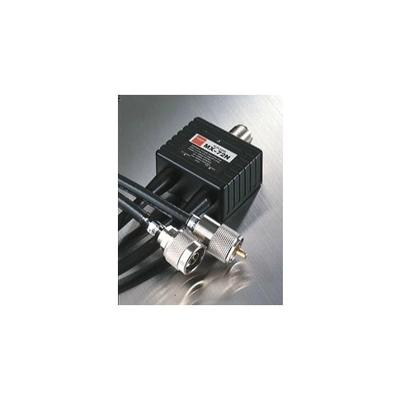

DIAMOND MX-72N
DIAMOND MX-72N - DUPLEXER (HF) (144/430MHZ)
Diamond duplexer
Key Features/Specifications:
Dimensions: 46W x 25H x 57D mm
Weight: 220g
Passband width: LPF/1.6 to 30MHz 49 to 150MHz, HPF/400 to 460MHz (LPF:1.6 to 225MHz,HPF:340 to 1000MHz receiving only)
Power rating: 1.6 to 30MHz: 400W (CW) 1kW (PEP)
49 to 150MHz: 150W (CW) 400W (PEP)
400 to 460MHz: 100W (CW) 250W (PEP)
Insertion loss: LPF/Less than 0.15dB HPF/Less than 0.25dB
Isolation: LPF: More than 60dB
Impedance: 50ohms/ than 1.2:1
Socket: SO239
Connection: 1 x PL259 1 X N-Type
Coaxial cable :5D-2VS (35cm)
Diamond duplexer
Key Features/Specifications:
Dimensions: 46W x 25H x 57D mm
Weight: 220g
Passband width: LPF/1.6 to 30MHz 49 to 150MHz, HPF/400 to 460MHz (LPF:1.6 to 225MHz,HPF:340 to 1000MHz receiving only)
Power rating: 1.6 to 30MHz: 400W (CW) 1kW (PEP)
49 to 150MHz: 150W (CW) 400W (PEP)
400 to 460MHz: 100W (CW) 250W (PEP)
Insertion loss: LPF/Less than 0.15dB HPF/Less than 0.25dB
Isolation: LPF: More than 60dB
Impedance: 50ohms/ than 1.2:1
Socket: SO239
Connection: 1 x PL259 1 X N-Type
Coaxial cable :5D-2VS (35cm)
nEorU8z
Product Code
1000.0 g
weight
New
Product Condition
1
Units in Stock
