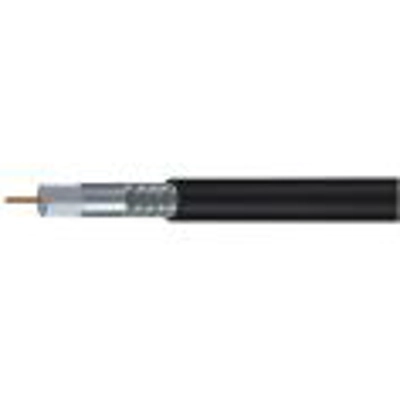

FZ400CU ULTRA FLEX SUPER LOW LOSS COAX
FZ400CU ULTRA FLEX SUPER LOW LOSS COAX
The new LMR-400 coax cable is a professional ultra-flex, super low loss, coax cable suitable for video RF signal and broadcast transmissions. This cable has been specifically formulated and designed to get as “super-low” loss as possible – see the outstanding loss performance statistics below.
Technical Specifications
Diameter (mm) 10.29±0.20
Min. Thickness: 1.0mm
Copper Inner Conductor Diameter: 2.74±0.01mm
Dielectric Foam PE Diameter: 7.24±0.15
Impedance at 200MHz: 50±2 Ohms
Capacitance: 54±3 Pf/m
Dielectric Withstand: >500V
Insulation Resistance at 20°: >5000 MOHMS. km
Inner Conductor Resistance: 20dB | 1000-3000MHz: >18dB
Temperature Range: -10° - +80°C
Min. Bending Radius: Fixed Laying: 30mm | Mobile Laying: 60mm
Insertion Losses
Loss: 10MHz 1.61dB/100m
Loss: 100MHz 4.50dB/100m
Loss: 400MHz 8.40dB/100m
Loss: 1000MHz 14.40dB/100m
Loss: 2000MHz 19.68dB/100m
Loss: 3000MHz 26.50dB/100m
price per 50mtr roll
The new LMR-400 coax cable is a professional ultra-flex, super low loss, coax cable suitable for video RF signal and broadcast transmissions. This cable has been specifically formulated and designed to get as “super-low” loss as possible – see the outstanding loss performance statistics below.
Technical Specifications
Diameter (mm) 10.29±0.20
Min. Thickness: 1.0mm
Copper Inner Conductor Diameter: 2.74±0.01mm
Dielectric Foam PE Diameter: 7.24±0.15
Impedance at 200MHz: 50±2 Ohms
Capacitance: 54±3 Pf/m
Dielectric Withstand: >500V
Insulation Resistance at 20°: >5000 MOHMS. km
Inner Conductor Resistance: 20dB | 1000-3000MHz: >18dB
Temperature Range: -10° - +80°C
Min. Bending Radius: Fixed Laying: 30mm | Mobile Laying: 60mm
Insertion Losses
Loss: 10MHz 1.61dB/100m
Loss: 100MHz 4.50dB/100m
Loss: 400MHz 8.40dB/100m
Loss: 1000MHz 14.40dB/100m
Loss: 2000MHz 19.68dB/100m
Loss: 3000MHz 26.50dB/100m
price per 50mtr roll
m6LwFHw
Product Code
moonraker
Brand
20.0 kg
weight
New
Product Condition
1
Units in Stock
