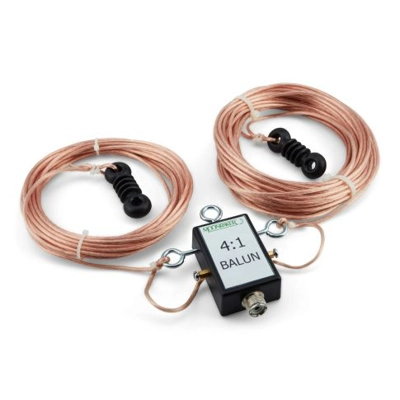

OSHF WINDOM STYLE OFF SET DIPOLE ANTENNA 40-10mtr
OSHF WINDOM STYLE OFF SET DIPOLE ANTENNA
A popular antenna design being off centre fed. Having this feed point a third way along the antenna gives an impedance of 200 ohms, therefore a 4:1 balun is added at the feed point to alter the impedance to 50 ohms for modern transceivers. Antenna can be mounted horizontally, V or inverted V and even bent to fit.
Frequency: 40-10m Inc. WARC bands (with ATU)
Balun: 4:1
Length: 21.27m (total length)
Socket: SO239
Power: 400W
A popular antenna design being off centre fed. Having this feed point a third way along the antenna gives an impedance of 200 ohms, therefore a 4:1 balun is added at the feed point to alter the impedance to 50 ohms for modern transceivers. Antenna can be mounted horizontally, V or inverted V and even bent to fit.
Frequency: 40-10m Inc. WARC bands (with ATU)
Balun: 4:1
Length: 21.27m (total length)
Socket: SO239
Power: 400W
