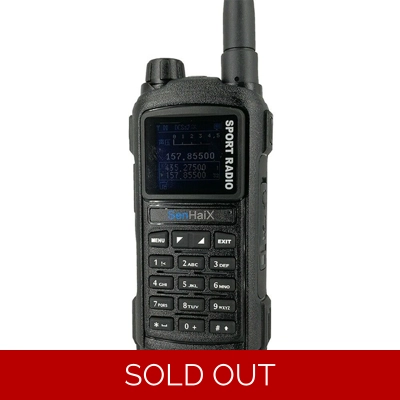

SenHaix 8800 Feature rich dual band handheld

Standard Accessories

Battery, Antenna, Charger, Adaptor, Belt Clip, Hand Strap

Radio Features

Power Output 5W
Dual Band
Dual Watch
Dual Standby
LED Flashlight
SOS Warning
DTMF Tone
ANI Code
PTT ID
FM Radio
Encryption
1750Hz Tone
Customize Channel Names
Bluetooth Programming
IOS Apstore App is SHX8800
Technical Specifications

General
Frequency Range UHF & VHF
Channel Capacity 128 Channels
Channel Step 25KHz(Wide Band), 12.5KHz(Narrow Band)
Frequency Stability ±2.5ppm
Operating Voltage 7.4V DC ± 20%
Operating Temperature -20℃ ~ +60 ℃
Antenna Impedance 50Ω
Dimension 134*60*38mm(with battery pack)
Weight 270g(with battery pack, antenna)
Transmitter
Wide Band Narrow Band
Output Power 5W 5W
Modulation Mode 16KφF3E 8KφF3E
Adjacent Channel Power ≥65dB ≥60dB
Singal Noise Ratio ≤-40dB ≤-40dB
Parasitic Harmonic ≤65dB ≥60dB
Spurious Emission ≤-36dBm ≤-36dBm
Audio Response 300Hz-3KHz 300Hz-3KHz
Audio Distortion ≤5% ≤5%
Receiver
Wide Band Narrow Band
Sensitivity -120dBm (20db SINAD) -120dBm (20db SINAD)
Intermodulation ≥60dB ≥55dB
Adjacent Channel Selectivity ≥60dB ≥55dB
Spurious Rejection ≥60dB ≥55dB
Audio Response 300Hz-3KHz 300Hz-3KHz
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5% ≤5%
Audio Output Power 1W 1W
