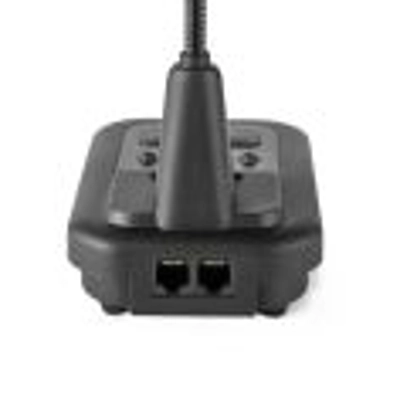

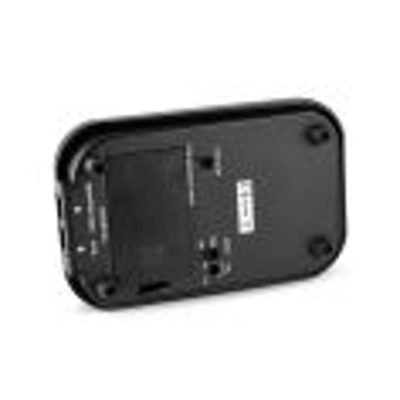

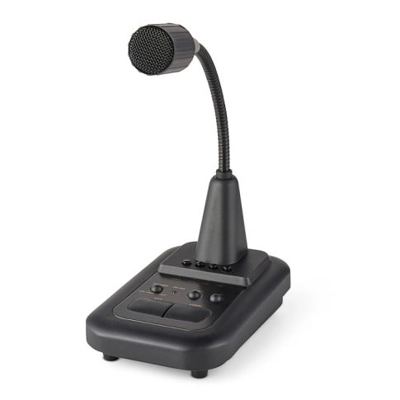

SHARMAN AV-508 - DESKTOP MICROPHONE

SM-508 Deluxe desk microphone

Suitable for most modern radios with required lead

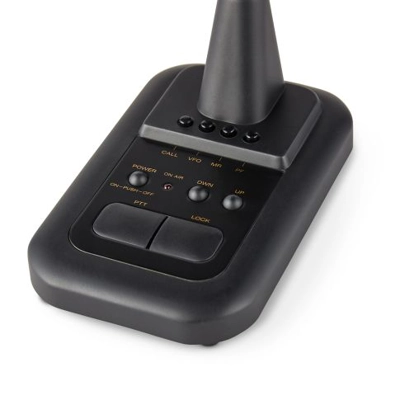

Features:

High-sensitivity condensed microphone element - ensures better voice quality
Flexible goose neck supporting the microphone
Power ON/OFF Switch
On Air indicator
PTT Switch
PTT Lock Switch
UP/Down Switches for compatible models
Mode Switch for optimising audio (FM/SSB)
Variable Microphone level adjustment
Compatible leads available for
Icom 8 Pin Round, Yaesu 8 Pin Round and modular, Kenwood 8 Pin Round and modular
Note older radios may need you to install batteries but most modern radios do not need batteries
Technical Specifications:

Microphone: Ceramic Microphone
Power Consumption: 2mA (RX) 3mA (TX)
IC: 1 piece
Transistor: 11 pieces
Diode: 6 pieces
Output Voltage: 0 – 30mV (RMS)
Output Impedance: 500 –100k ohms
Compressor Level: 45dB (HIGH) 10dB (LOW) 6
Power Source: DC3V
Dimensions: 100mm (W) x 155mm (D) x 35mm(H)
Weight: 450g
