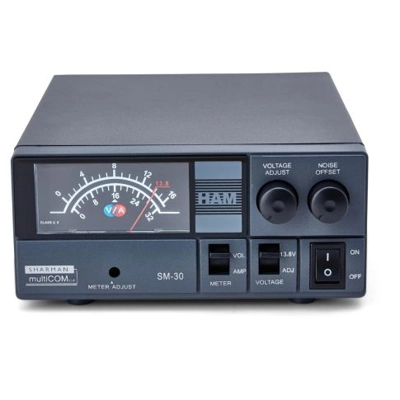

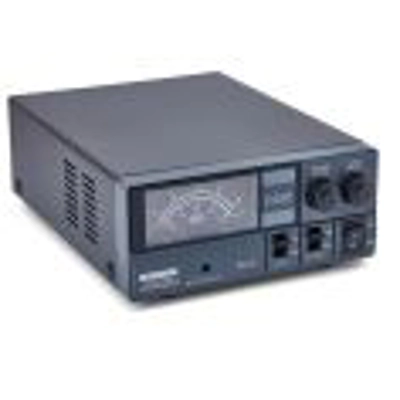

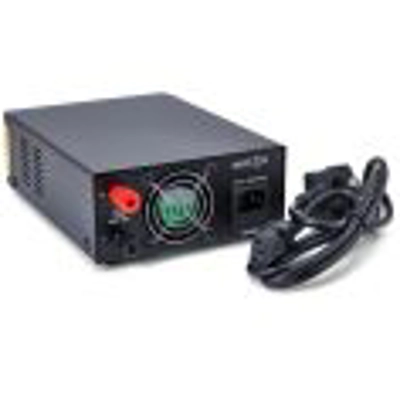

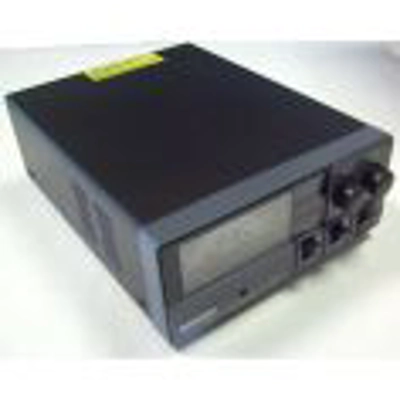

SHARMAN SM-30
SHARMAN SM-30 (20 AMP) SWITCH MODE POWER SUPPLY
NEW TWO YEAR WARRANTY
A high power DC regulated Switch Mode power supply, providing up to 30amp maximum current.
Comes with Over Voltage, Current Limiting and Short Circuit Protection.
Special Features:
Lightweight
Compact design
Noise Offset Volume Control knob
Voltage Adjustment knob
Short Circuit protection
Over Voltage protection
Current Limiting protection
Reliable and safer
Voltage and Current meter
Output Control switch
Meter Calibration button
Technical Specifications:
Model: SM-30
Input Voltage: 220-240V AC
Output Voltage: 13.8V DC or 9-15V Adjustable
Output Current: 30A Maximum / 20A Continuous
Ripple: Less than 80mVp-p at rated load
Dimensions: 155 (W) x 70 (H) x 205 (D) mm
Weight: 1.5kg
NEW TWO YEAR WARRANTY
A high power DC regulated Switch Mode power supply, providing up to 30amp maximum current.
Comes with Over Voltage, Current Limiting and Short Circuit Protection.
Special Features:
Lightweight
Compact design
Noise Offset Volume Control knob
Voltage Adjustment knob
Short Circuit protection
Over Voltage protection
Current Limiting protection
Reliable and safer
Voltage and Current meter
Output Control switch
Meter Calibration button
Technical Specifications:
Model: SM-30
Input Voltage: 220-240V AC
Output Voltage: 13.8V DC or 9-15V Adjustable
Output Current: 30A Maximum / 20A Continuous
Ripple: Less than 80mVp-p at rated load
Dimensions: 155 (W) x 70 (H) x 205 (D) mm
Weight: 1.5kg
PSrPK1m
Product Code
sharmans
Brand
2.0 kg
weight
New
Product Condition
1
Units in Stock
