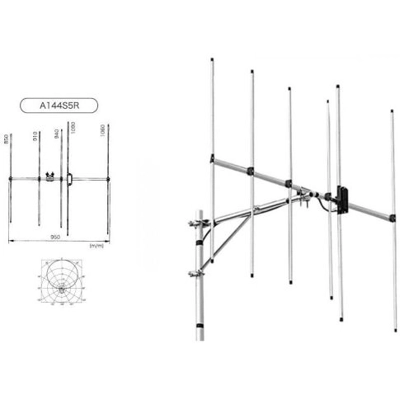

DIAMOND A144S5R 2M 5 ELEMENT YAGI
DIAMOND A144S5R 2M 5 ELEMENT YAGI
This antenna has high gain for small size, easy to install and is factory adjusted - so no tuning required.
Key Features/Specifications:
Frequency 144-146MHz
Gain 9.1dBi
Elements 5
Power 50W
Impedance 50 Ohms
Socket SO239
Front-to-back ratio >14dB
VSWR <1.3:1 (typical)
Boom length 0.95m
Mast size 25-47mm
Wind surface area 0.1 m2
Turning radius 0.860m
Dimensions 950 x 1090 x 73mm
Weight 0.63kg
This antenna has high gain for small size, easy to install and is factory adjusted - so no tuning required.
Key Features/Specifications:
Frequency 144-146MHz
Gain 9.1dBi
Elements 5
Power 50W
Impedance 50 Ohms
Socket SO239
Front-to-back ratio >14dB
VSWR <1.3:1 (typical)
Boom length 0.95m
Mast size 25-47mm
Wind surface area 0.1 m2
Turning radius 0.860m
Dimensions 950 x 1090 x 73mm
Weight 0.63kg
QvFzO3H
Product Code
5000.0 g
weight
New
Product Condition
1
Units in Stock
