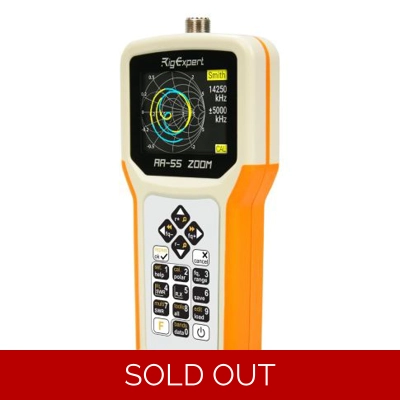

RIGEXPERT AA-55 ZOOM ANALYSER £290
RIGEXPERT AA-55 ZOOM ANALYSER This analyser is designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 60kHz to 55MHz A built-in ZOOM capability makes graphical measurements especially effective. The following tasks are easily accomplished by using this analyser Rapid check-out of an antenna Tuning an antenna to resonance Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.) Making coaxial stubs or measuring their parameters Cable testing and fault location, measuring cable loss and characteristic impedance Measuring capacitance or inductance of reactive loads Specification Frequency: 0.06 to 55MHz Frequency entry: 1KHz resolution Measurement for: 25/50/75/100/150/200/300/450/600 ohm SWR measurement range: 1-100 in numerical mode / 1-10 in chart mode R&X range: 0…10000, - 10000…10000 in numerical mode /0…1000, -1000…1000 in chart mode Dimensions: 103mm x207mmx37mm Weight:310g (without batteries) Operating temperature: 0-40 C (32-104 F) Display modes SWR at single or multiply frequencies SWR return loss: R, X, Z, L, C and phase angle at single frequency SWR Chart: 100 points R X Chart: 100 points Smith Chart: 100 points Return loss Chart: 100 points Cable tools (loss and characteristic impedance) 10 slots to save measurement results RF Output Connector type: UHF (SO-239) Output signal shape square 0.06 to 55MHz Output power: +13 dBm (at 50 Ohm load) Power Two 1.5V alkaline batteries, type AA Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used When the analyser is connected to a PC or a DC adapter with USB socket, it takes power from these sources Interface 320×240 colour TFT display 6×3 keys on the water-proof keypad Multilingual menus and help screens USB connection to a personal computer Bluetooth specs The AA-55 Zoom analyser has two versions of the installed Bluetooth module Bluetooth Classic. Firmware version 1.** This Bluetooth protocol is supported only by devices running the Android operating system (older than version 4.0). There is also limited support at Windows and Linux. Bluetooth Low Energy (BLE). Firmware version 2.** This Bluetooth protocol is supported by gadgets running Android and iOS operating systems. There is no support for analysers with the BLE module in the Windows, Linux, and macOS operating systems of the analysers with the BLE module
