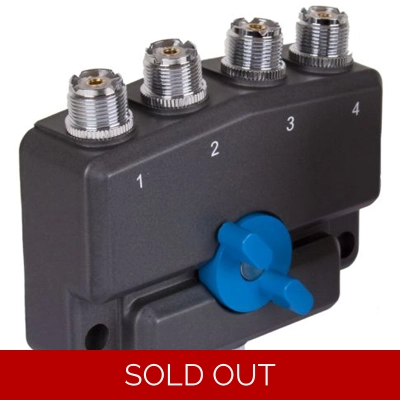

WATSON CX-SW4PL - 4 WAY SO239 COAX SWITCH
Good quality antenna switch, this 4-way version is fitted with the very popular SO239 sockets. These Watson premium grade RF coax switches have been created to fulfil a cost effective need for RF switches that are able to cater for the ever widening commercial RF spectrum. This CX-SW4PL 4-way switch is ideal for use in antenna systems or service departments. It will provide a very positive method of switching between 4 coax systems and offer very little loss. Watson's reputation for solid engineering and reliability together with realistic prices make these switches an obvious choice for a wide range of applications.
Key Features/Specifications:

Watson CXSW4PL
Frequency range :- DC~900MHz
Power range :- DC~30MHz - 1.5kw / 30-200MHz - 1kw / 200-500MHz-500w
Power range :- 500-900MHz - 150w
Insertion Loss :- DC~500MHz - >=0.1dB / 500-900MHz >=0.2dB
Impedance :- 50 Ohms
Output Port Isolation :- DC-500MHz = 1.10 / 500~900MHz >= 1.25
Connectors :- 5 x SO-239 sockets
Weight :- 881g
Size :- 105 x 110 x 43 HWD
