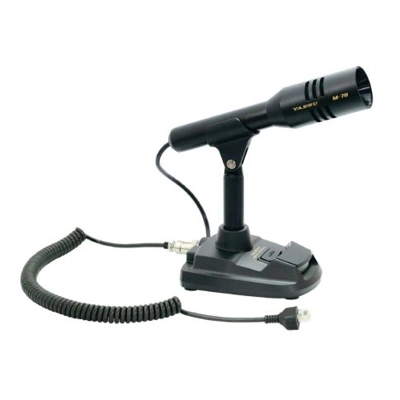

YAESU M-70 DESKTOP MICROPHONE
YAESU M-70 DESKTOP MICROPHONE
The M-70 utilizes a directional condenser microphone element which is specially tuned the frequency response to create clear and crisp audio for radio communication.
The PTT uses three Air-Cylinder tubes similar to the Reference Microphone M-1 to provide a solid and smooth extended operation. A simple one-touch PTT keylock button is placed just above the PTT key for those long rag chews.
Built-in Low-Cut filter allows to shape the low frequency response (cut off at 340Hz, -6dB/octave). ON/ OFF is selectable by a sliding switch located on the bottom of the microphone.
An isolation transformer is integrated in the circuit board to enhance the audio quality.
The M-70 is compatible with all YAESU HF transceivers equipped with round 8-pin microphone connector or 8-pin modular microphone connector. We believe that this Microphone will have a positive impact on your YAESU HF transceivers business.
Technical Specifications:
Microphone Type: Condenser Microphone
Supply Voltage: DC5.0 V ±10%
Frequency Response: 30-17000 Hz
Sensitivity: -60 dB (1kHz 0 dB=1V/1Pa)
Microphone Impedance: 600 Ohms
Dimensions: W106 x H170 x D126.5mm (*H: max. with microphone flat)
Weight: 15.87 0z (450g) without cable
Compatible Transceivers:
FTDX101
FTDX10
FTDX9000 Series
FTDX5000 Series
FTDX1200
FTDX3000D
FT-991/A
FT-891
FT-450/D
FT-857/D, FT-818ND, FT-817/ND
FT-2000/D
FT-1000MP, FT-100MP MARK-V
FT-950, FT-920, FT-900, FT-990*
FT-897.D, FT-847
FT-1000*, FT-850*, FT-840*, FT-747*
*Require the optional power supply unit
The M-70 utilizes a directional condenser microphone element which is specially tuned the frequency response to create clear and crisp audio for radio communication.
The PTT uses three Air-Cylinder tubes similar to the Reference Microphone M-1 to provide a solid and smooth extended operation. A simple one-touch PTT keylock button is placed just above the PTT key for those long rag chews.
Built-in Low-Cut filter allows to shape the low frequency response (cut off at 340Hz, -6dB/octave). ON/ OFF is selectable by a sliding switch located on the bottom of the microphone.
An isolation transformer is integrated in the circuit board to enhance the audio quality.
The M-70 is compatible with all YAESU HF transceivers equipped with round 8-pin microphone connector or 8-pin modular microphone connector. We believe that this Microphone will have a positive impact on your YAESU HF transceivers business.
Technical Specifications:
Microphone Type: Condenser Microphone
Supply Voltage: DC5.0 V ±10%
Frequency Response: 30-17000 Hz
Sensitivity: -60 dB (1kHz 0 dB=1V/1Pa)
Microphone Impedance: 600 Ohms
Dimensions: W106 x H170 x D126.5mm (*H: max. with microphone flat)
Weight: 15.87 0z (450g) without cable
Compatible Transceivers:
FTDX101
FTDX10
FTDX9000 Series
FTDX5000 Series
FTDX1200
FTDX3000D
FT-991/A
FT-891
FT-450/D
FT-857/D, FT-818ND, FT-817/ND
FT-2000/D
FT-1000MP, FT-100MP MARK-V
FT-950, FT-920, FT-900, FT-990*
FT-897.D, FT-847
FT-1000*, FT-850*, FT-840*, FT-747*
*Require the optional power supply unit
